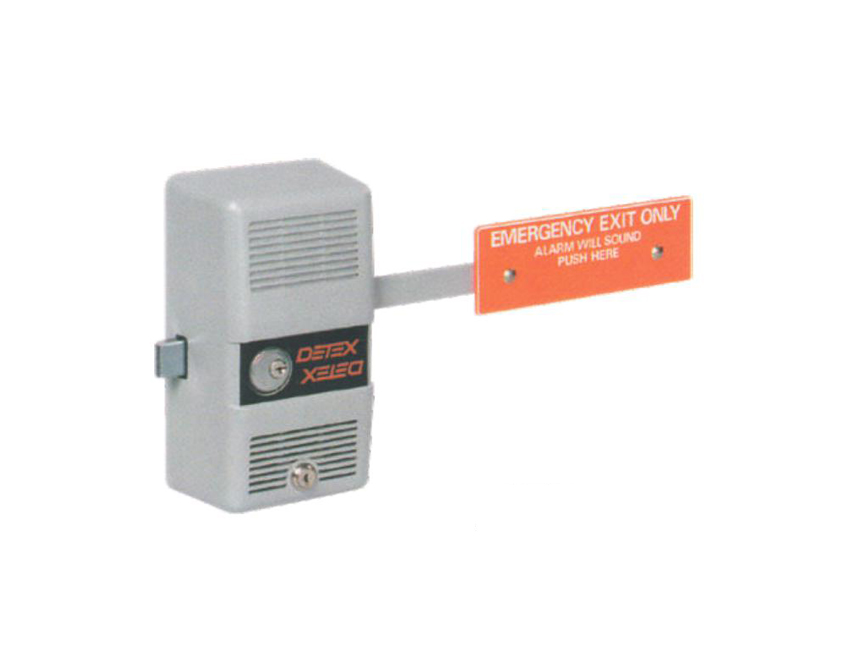

Detex ECL-230D Panic Alarm Device

ECL-230D – Short Bar
(Cylinder Not Included)

Benefits

• Code-compliant,battery alarmed, rugged panic hardware with deadbolt provides managed security for secondary
• Reduces employee and customer theft
• Proven durability, reliability and long service life at a reasonable price
• “Best in class”attack resistance from the outside; withstands over 2200 lbs. static load(outside pull force)
• Time tested construction resists attack from the inside.
• Operation is straightforward, requiring no special knowledge
• Easy to install Exceeds life safety, ADA, CA Title 19,ANSI/BHMA requirements for all building codes
• U.L. listed panic hardware

Features

• Single point deadbolt locking device deters unauthorized access from the outside while allowing emergency egress from the inside.
• 1″throw bolt provides resistance to crowbar attacks from the outside.
• Rugged housing with key lock, saw-resistant bolt and corrosionresistant alloy lock body resist defeat from the inside.
• Pressing the exit bar as an unauthorized use of an exit door sounds a high decibel, 100dB minimum, alarm, commanding attention even in the noisiest environments.
• Inside and outside key control capabilities allow authorized alarm bypass.
• Use of control key permits unlocking the door without sounding the alarm.
• Locking the deadbolt mechanism always arms the alarm system.
• Resetting the alarm can only be accomplished with a control key that also throws the deadbolt for maximum security.
• Bright push pad signage deters unauthorized exit.
• Non-handed lock and bars which require no cutting makes installation easy.
• Accepts 5-pin through 7-pin standard and interchangeable core cylinders
• ECL-230D may be used on narrow doors and ECL-230D-PH (long bar version) on 36″- 48″wide doors.
